AGL
Sliding · residential

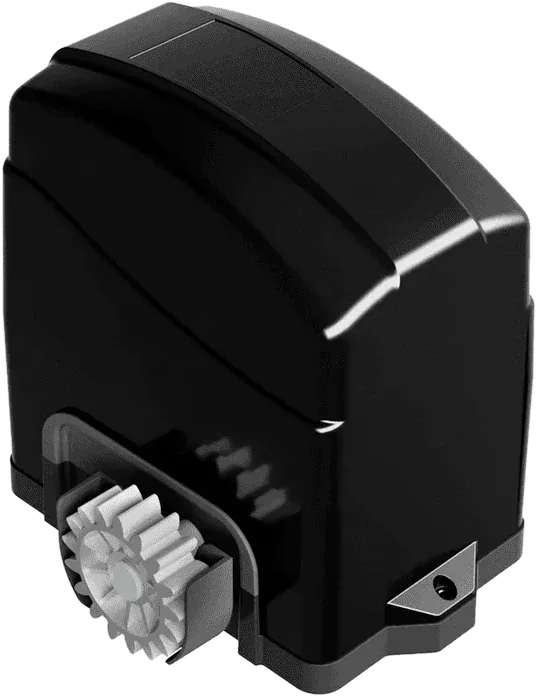

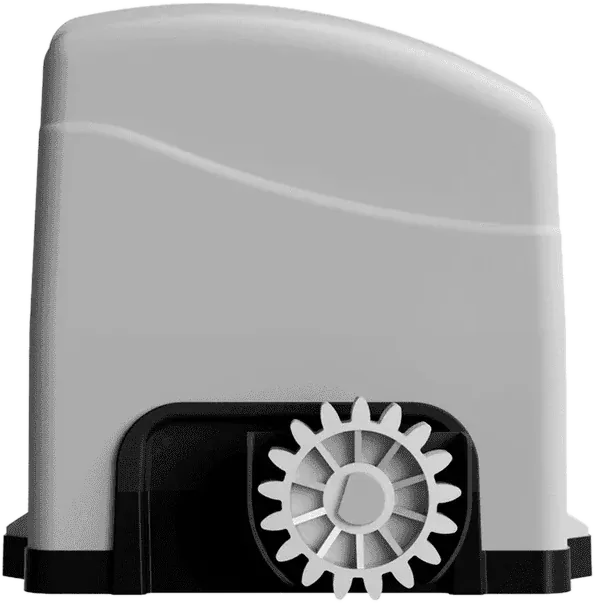

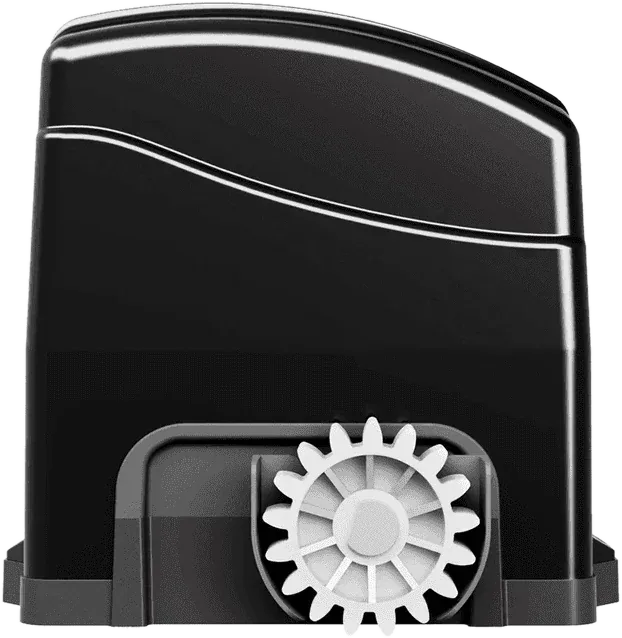

Trino
AGL's core sliding operator for villa and townhouse gates, from 300 kg up to 900 kg.
900 kgmax gate weight
55/hmax cycles per hour
5models in the line
The Trino line runs quietly, stops on an electronic brake and protects itself with a thermal cut-out. Every model takes photocells and push buttons, closes automatically on a timer, and is housed in an industrial-plastic cover. Speed versions open a 3 m gate in about 7 seconds.
220 V · 50 HzGulf supply version
Thermal protectioncuts out before overheating
Metal gearingfor heavy, frequent use
- Automatic timed closing
- Electronic brake
- Thermal protection against overheating
- Industrial-plastic housing
- Inputs for photocell and push button
- 433.92 MHz remote control
AGL codes: 2001032 (300) · 2001035 (500) · 2001039 (700) · 2001041 (900)
Spec sheet
AGL published data · 220 V for the Gulf| Model | Gate weight | Opening | Cycles / hour | Motor | Notes |
|---|---|---|---|---|---|
| Trino Light / Trino 300 | up to 300 kg | 3 m in 12 s | 25 | 1/5 HP | Nylon gear |
| Trino 500 | up to 500 kg | 3 m in 12 s | 35 | 1/4 HP | Nylon gear |
| Trino 700 | up to 700 kg | 3 m in 12 s | 45 | 1/3 HP | Metal gear |
| Trino 900 | up to 900 kg | 3 m in 12 s | 55 | 1/2 HP | Metal gear |
| Trino Speed 300 / 500 | 300 / 500 | 3 m in ~7 s | — | — | Fast version |
More sliding operators
See all
Have a gate to automate?
Send the gate type, weight and how often it opens. We reply with the right AGL operator, a price and the lead time from Dubai.
