AGLRolling shutter motors
Roller door operators for shopfronts, warehouses and parking shutters, AC from 200 kg to 1,000 kg, DC 24 V versions and an Izzy Wi-Fi control unit.
Door weight and lifting height.

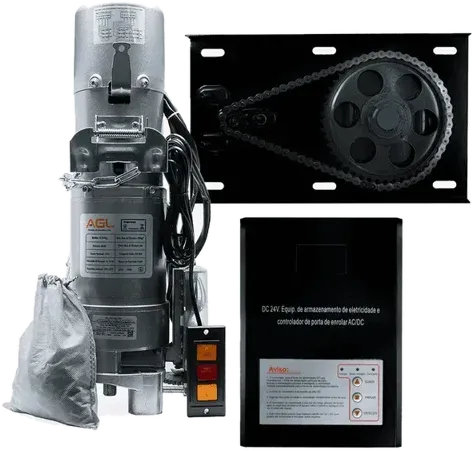

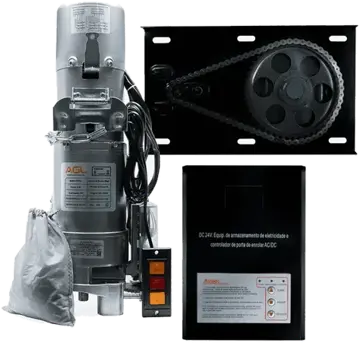

A rolling shutter motor sits on the shaft and rolls the curtain up. Choose by the weight of the curtain and the height it lifts. AGL's AC range runs from 200 kg to 1,000 kg and from 4 m to 9 m of lift.
| AC model | Door weight | Rated power | Max lifting height |
|---|---|---|---|
| AC 200 | up to 200 kg | 180 W | 4 m |
| AC 300 | up to 300 kg | 200 W | 5 m |
| AC 400 | up to 400 kg | 250 W | 5 m |
| AC 500 | up to 500 kg | 300 W | 6 m |
| AC 600 | up to 600 kg | 370 W | 6 m |
| AC 700 | up to 700 kg | 400 W | 7 m |
| AC 800 | up to 800 kg | 450 W | 8 m |
| AC 1000 | up to 1,000 kg | 550 W | 9 m |
AC, DC and Wi-Fi.

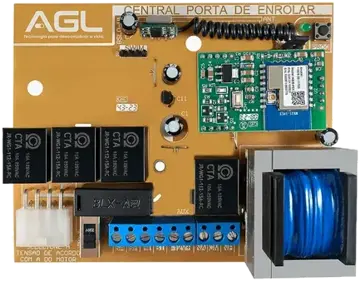

AC 220 V models suit most shops and warehouses. DC 24 V versions are available for doors that need to keep running from a backup battery. The Izzy control unit adds app control from the AGL Home app.
Dust, heat and power.
- 220 V operators, 50 Hz versions for the UAE, Qatar, Oman, Kuwait, Bahrain, Egypt and Türkiye and 60 Hz for Saudi Arabia.
- Pair with a UPS where power cuts are common, so shutters still open.
- Low running noise for shopfronts under residential floors.
Rolling shutter motor FAQ
What size rolling shutter motor do I need?
Weigh or estimate the curtain and pick the AC model rated above it whose lifting height covers the opening, for example AC 500 for a 450 kg curtain lifting 6 m.
AC or DC?
AC 220 V for most doors; DC 24 V where you want battery backup to keep the door working through power cuts.
Can a shutter open from the phone?
Yes, with the Izzy control unit and the AGL Home app.
Have a gate to automate?
Send the gate type, weight and how often it opens. We reply with the right AGL operator, a price and the lead time from Dubai.
