Sliding · fast
DZ Brabus

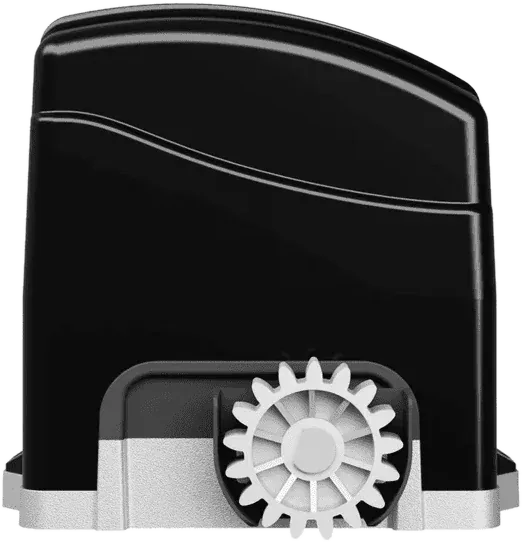

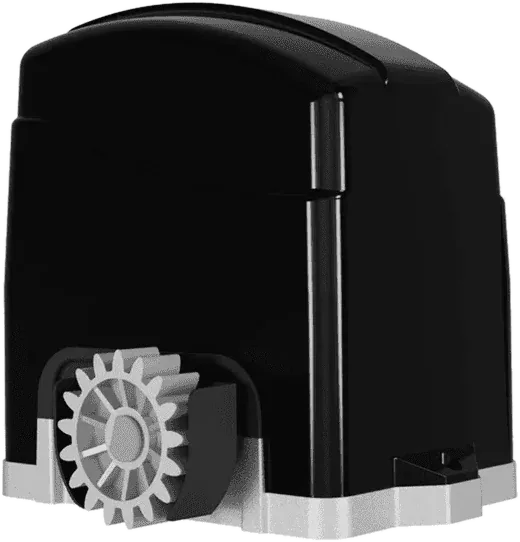

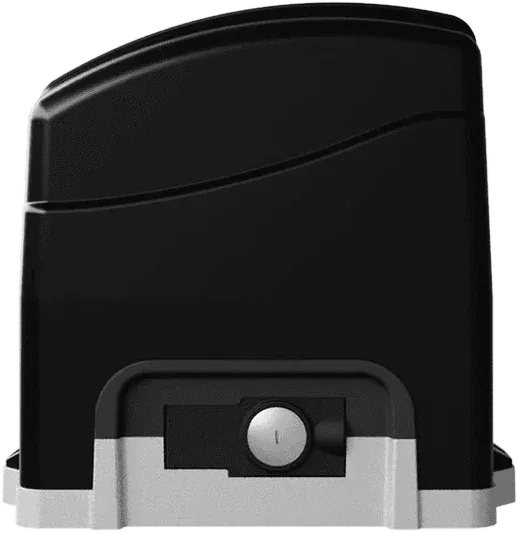

A fast sliding operator in a black housing, for gates up to 700 kg.
700 kgmax gate weight
65/hmax cycles per hour
4models in the line
DZ Brabus opens 3 m in 6.8 seconds and runs up to 65 cycles an hour. Remotes are managed directly on the unit, and it runs on 50 or 60 Hz supplies.
220 V · 50 HzGulf supply version
Thermal protectioncuts out before overheating
Aerial mount optionlifts the motor above standing water
- 3 m in 6.8 seconds
- Up to 65 cycles per hour
- 50/60 Hz
- Remote management on the unit
- Electronic brake
- Thermal protection
AGL codes: 20011215 (220 V)
Spec sheet
AGL published data · 220 V for the Gulf| Model | Gate weight | Opening | Cycles / hour | Motor | Notes |
|---|---|---|---|---|---|
| Brabus Speed Light | up to 300 kg | 3 m in 6.8 s | 15 | — | — |
| Brabus Speed 300 | up to 300 kg | 3 m in 6.8 s | 25 | — | — |
| Brabus Speed 500 | up to 500 kg | 3 m in 6.8 s | 45 | — | — |
| Brabus Speed 700 | up to 700 kg | 3 m in 6.8 s | 65 | — | — |
More sliding operators
See all
Have a gate to automate?
Send the gate type, weight and how often it opens. We reply with the right AGL operator, a price and the lead time from Dubai.
