Tilting · chain drive
BV Cadena

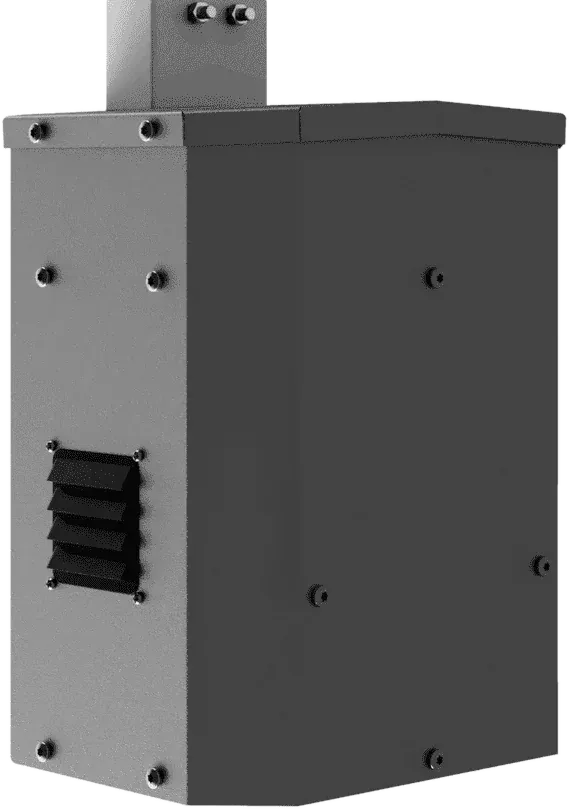

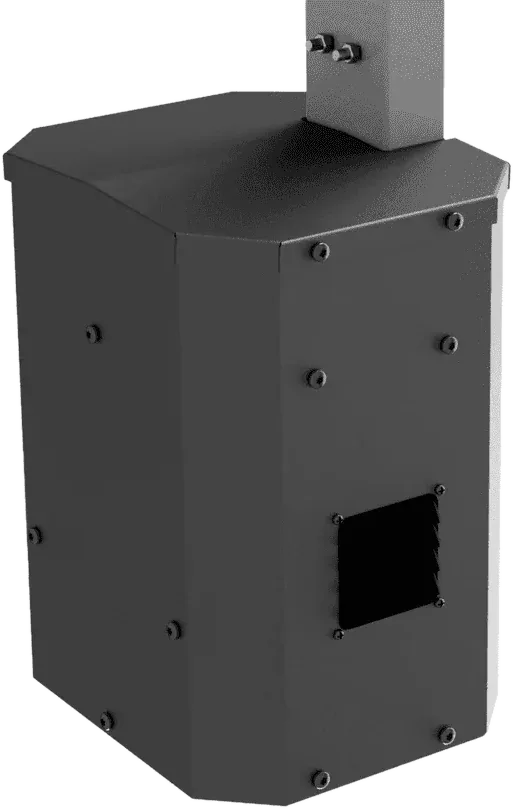

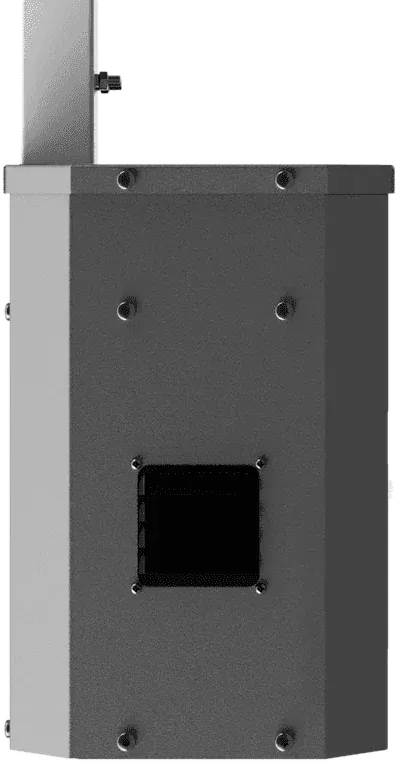

AGL's chain-drive tilting operator, built for robustness.
500 kgmax door weight
65/hmax cycles per hour
4models in the line
BV Cadena drives the door through a chain for a heavy-duty action. Standard models use the Flex board with encoder; the Turbo model uses an inverter and opens in 3.9 seconds with a 1.5 m drive.
220 V · 50 HzGulf supply version
- Chain drive
- 25 to 65 cycles per hour
- Flex board with encoder
- Turbo inverter version
- Dual-voltage inverter
AGL codes: 2008088
Spec sheet
AGL published data · 220 V for the Gulf| Model | Door weight | Opening | Cycles / hour | Motor | Notes |
|---|---|---|---|---|---|
| BV Cadena 1/4 | up to 250 kg | 8 s | 25 | 1/4 HP | Flex + encoder |
| BV Cadena 1/3 | up to 300 kg | 8 s | 35 | 1/3 HP | Flex + encoder |
| BV Cadena 1/2 | up to 400 kg | 8 s | 65 | 1/2 HP | Flex + encoder |
| BV Cadena Turbo | up to 500 kg | 3.9 s | — | 1/2 HP 3-ph | Inverter |
