AGL
Tilting · garage

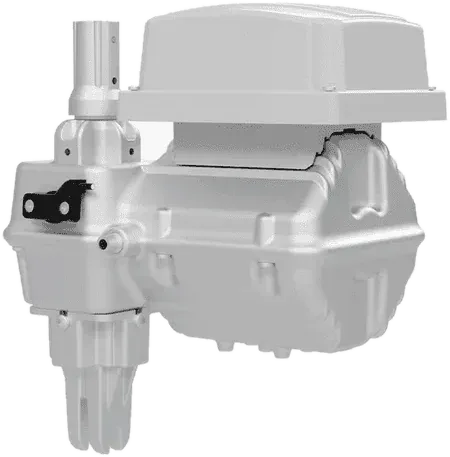

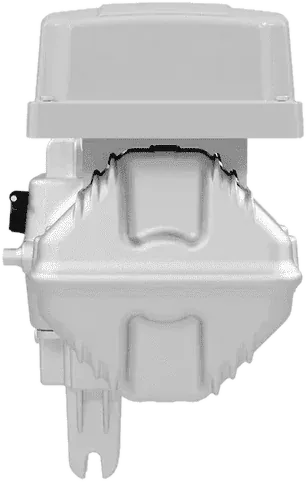

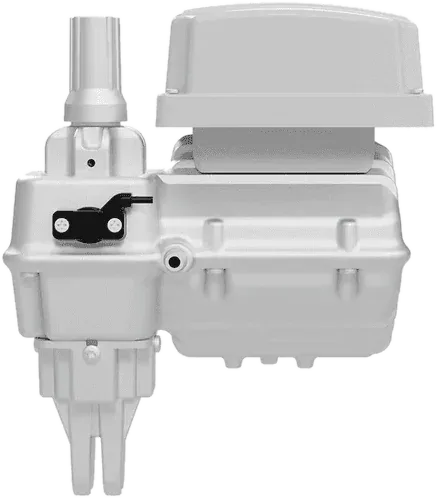

Trino New BV
The current tilting (up-and-over) operator for garage and car-park doors up to 500 kg.
500 kgmax door weight
50/hmax cycles per hour
7models in the line
New BV covers light residential doors through to heavy car-park doors. Speed versions open in about 8 seconds, and the Heavy models run 50 cycles an hour for busy buildings.
220 V · 50 HzGulf supply version
- Doors up to 500 kg
- Speed versions open in ~8 s
- Up to 50 cycles per hour
- Low running noise
- Izzy smart version available
AGL codes: 2008042 (Heavy 220 V) · 2008044 (Heavy Speed 220 V)
Spec sheet
AGL published data · 220 V for the Gulf| Model | Door weight | Opening | Cycles / hour | Motor | Notes |
|---|---|---|---|---|---|
| New BV Heavy | up to 500 kg | 14 s | 50 | 1/2 HP | — |
| New BV Heavy Speed | up to 450 kg | 8 s | 50 | 1/2 HP | — |
| New BV3 | up to 500 kg | 14 s | 30 | 1/3 HP | — |
| New BV3 Speed | up to 450 kg | 8 s | 30 | 1/3 HP | — |
| New BV4 | up to 300 kg | 14 s | 20 | 1/4 HP | — |
| New BV4 Speed | up to 250 kg | 8 s | 20 | 1/4 HP | — |
| New BV Light Speed | up to 200 kg | 8 s | 10 | 1/5 HP | — |
More tilting operators
See all
Have a gate to automate?
Send the gate type, weight and how often it opens. We reply with the right AGL operator, a price and the lead time from Dubai.
