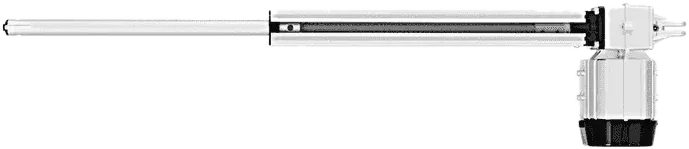

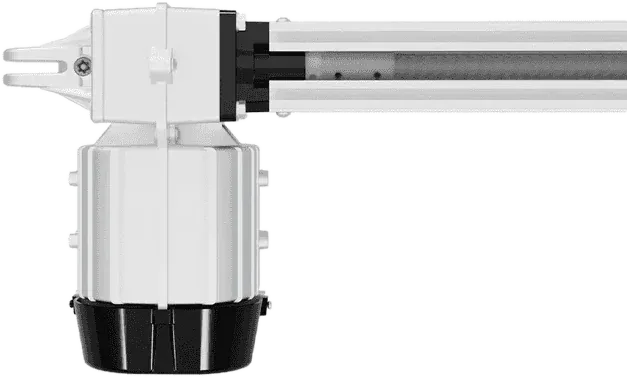

Trino Pivo
Arm operator for swing gates up to 500 kg per leaf, in single or double kits.
500 kgmax gate weight
30/hmax cycles per hour
2models in the line
Trino Pivo moves quietly and opens in 6 to 16 seconds depending on arm length. Arms come in four lengths. The clutch is easy to adjust and controlled electronically, and the internal crown is metal. AGL's installation manual rates it for -5 °C to 60 °C.
220 V · 50 HzGulf supply version
Thermal protectioncuts out before overheating
IPX4protected against splashing water
- Single or double leaf kits
- Arms 0.5, 0.75, 1.0 and 1.5 m
- Metal internal crown
- Electronic clutch control
- Thermal protection
- Working temperature -5 °C to 60 °C
AGL codes: 2007014 (Pivo 4, 1.0 m, 220 V)
Spec sheet
AGL published data · 220 V for the Gulf| Model | Gate weight | Opening | Cycles / hour | Motor | Notes |
|---|---|---|---|---|---|
| Trino Pivo 3 | up to 500 kg | 6–16 s | 30 | 1/3 HP | 14 N·m |
| Trino Pivo 4 | up to 300 kg | 6–16 s | 20 | 1/4 HP | 16 N·m |
