AGL
Parts · electronics
Control boards
Replacement and upgrade boards, including the Mach 1 inverter.
Mach 1 is AGL's newest inverter board. It learns the best speed, force and ramps for each gate, removes play at the end stop with an anti-backlash function, and is set up from the app over Wi-Fi and Bluetooth. Flex, Light and CCMD Industrial boards cover standard operators and also work with other brands' motors.
- Mach 1: self-learning, anti-backlash, app setup
- Flex: 1/2 HP, BV and pivot, encoder

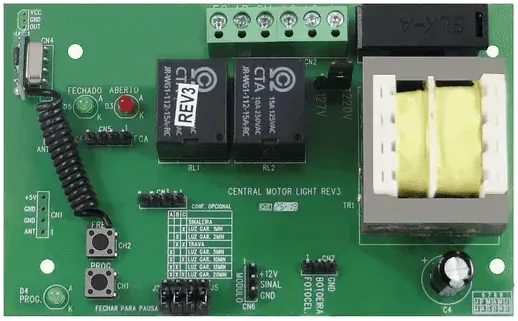

- Light: 1/2 HP, Trino Light

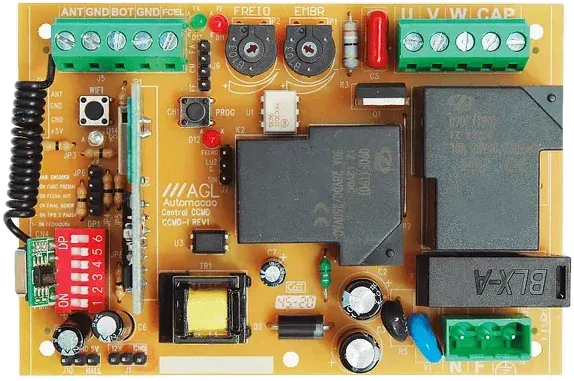

- CCMD Industrial: 1 HP, DZ Strong 2000, encoder
- 110 V or 220 V
AGL codes: 2010108 (Flex) · 2003019 (Light) · 2010029 (CCMD)
Spec sheet
AGL published data · 220 V for the Gulf| Board | Type | Motor power | Notes |
|---|---|---|---|
| Mach 1 1/2 HP | Inverter | 1/2 HP | Izzy version |
| Mach 1 Industrial | Inverter | 1 HP | — |
| Central Flex | Standard | 1/2 HP | Encoder |
| Central Light | Standard | 1/2 HP | — |
| CCMD Industrial | Standard | 1 HP | Encoder, Izzy version |
